AirScope Case Study

Embedded RF evidence workflows from capture to report.

AirScope demonstrates RTG LLC work across connected devices, wireless capture, normalized data models, operational dashboards, and engineering deliverables.

View Screenshots Contact RTG

Engineering scope

A complete prototype workflow, not just a dashboard.

The Stage 1 AirScope build connects RF collection, parser reliability, observation normalization, analyst review, survey finalization, and automatic documentation. It is a controlled-pilot engineering example suitable for showing RTG's approach to complex embedded and connected-system work.

RTG Contributions

Embedded capture workflow coordination for HaLow and Wi-Fi paths
Normalized observations and evidence exports for engineering review
Operational UI for AP inventory, channel analysis, and survey state
Automated Markdown, HTML, PDF, CSV, JSON, and JSONL output paths

Public-safe evidence

Sanitized AirScope screenshots.

The screenshots below replace real AP labels with demo names and mask BSSIDs while preserving the product workflow and engineering context.

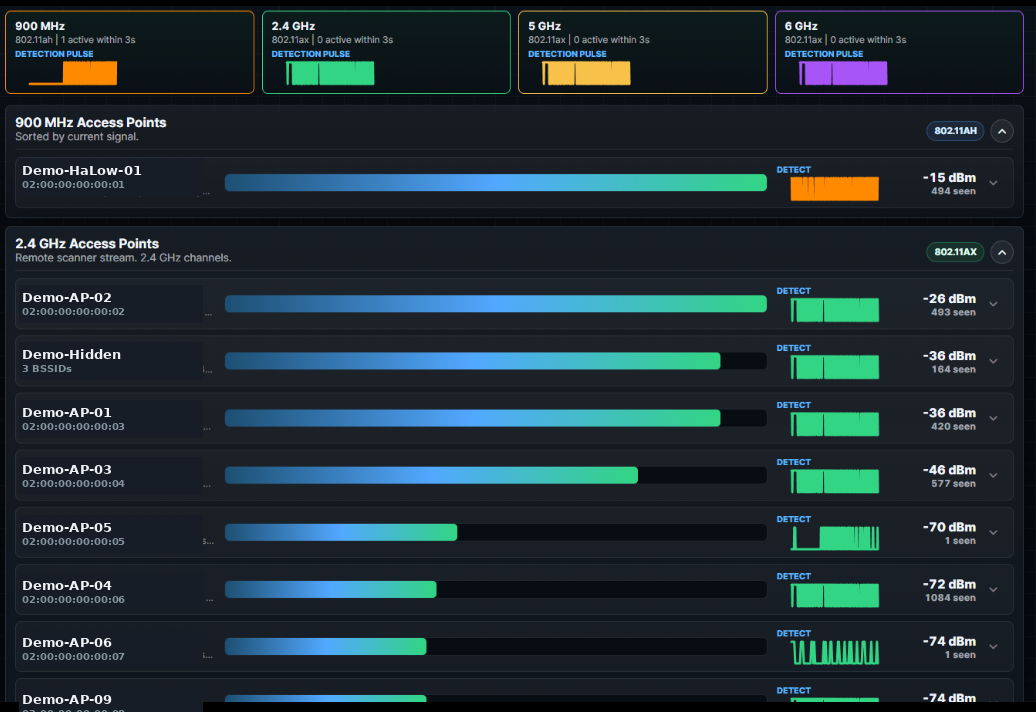

Sanitized AirScope AP overview — Multi-band AP overview showing HaLow and Wi-Fi detection state.

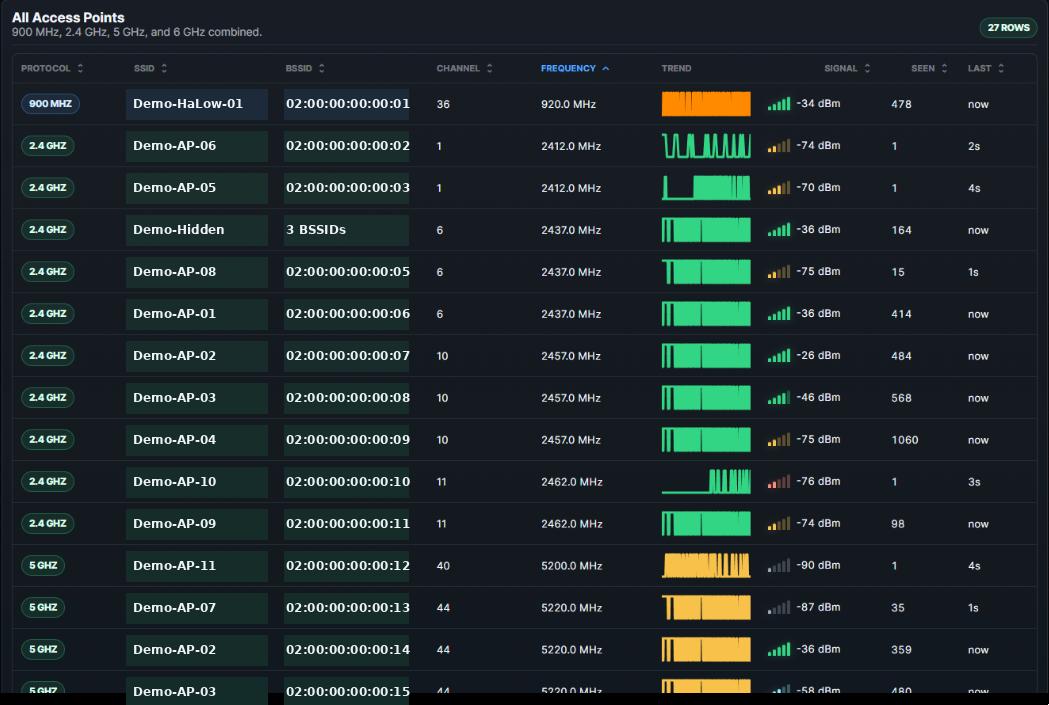

Sanitized AirScope all access points table — All-AP inventory with protocol, SSID, BSSID, channel, frequency, trend, signal, and last-seen columns.

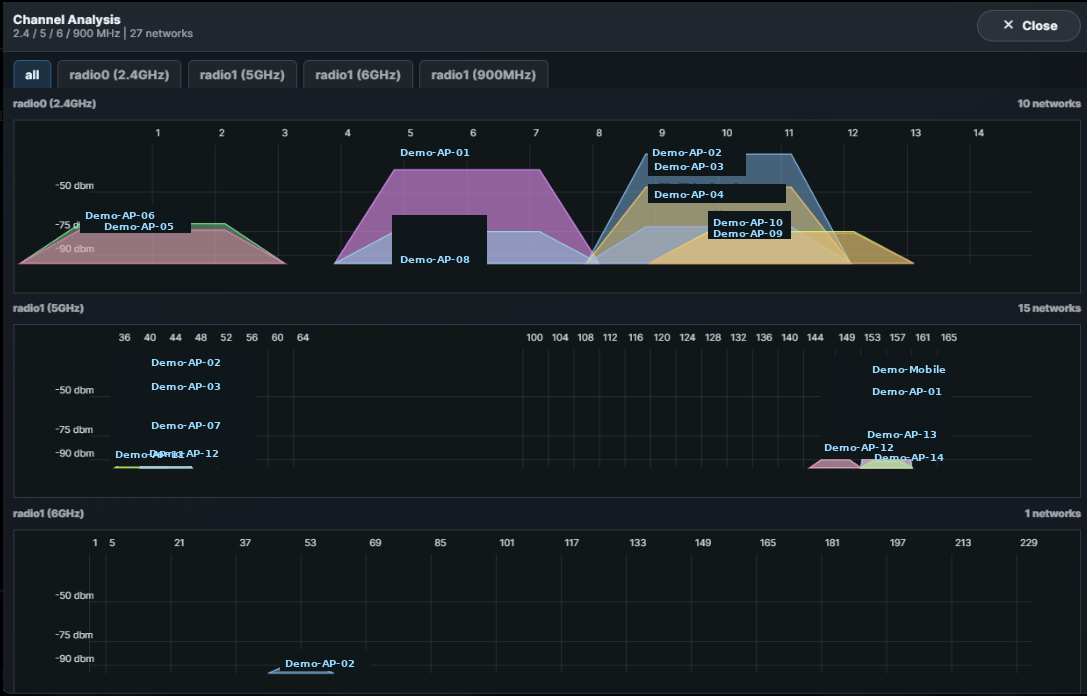

Sanitized AirScope channel analysis chart — Channel analysis view for reviewing overlap and band utilization.

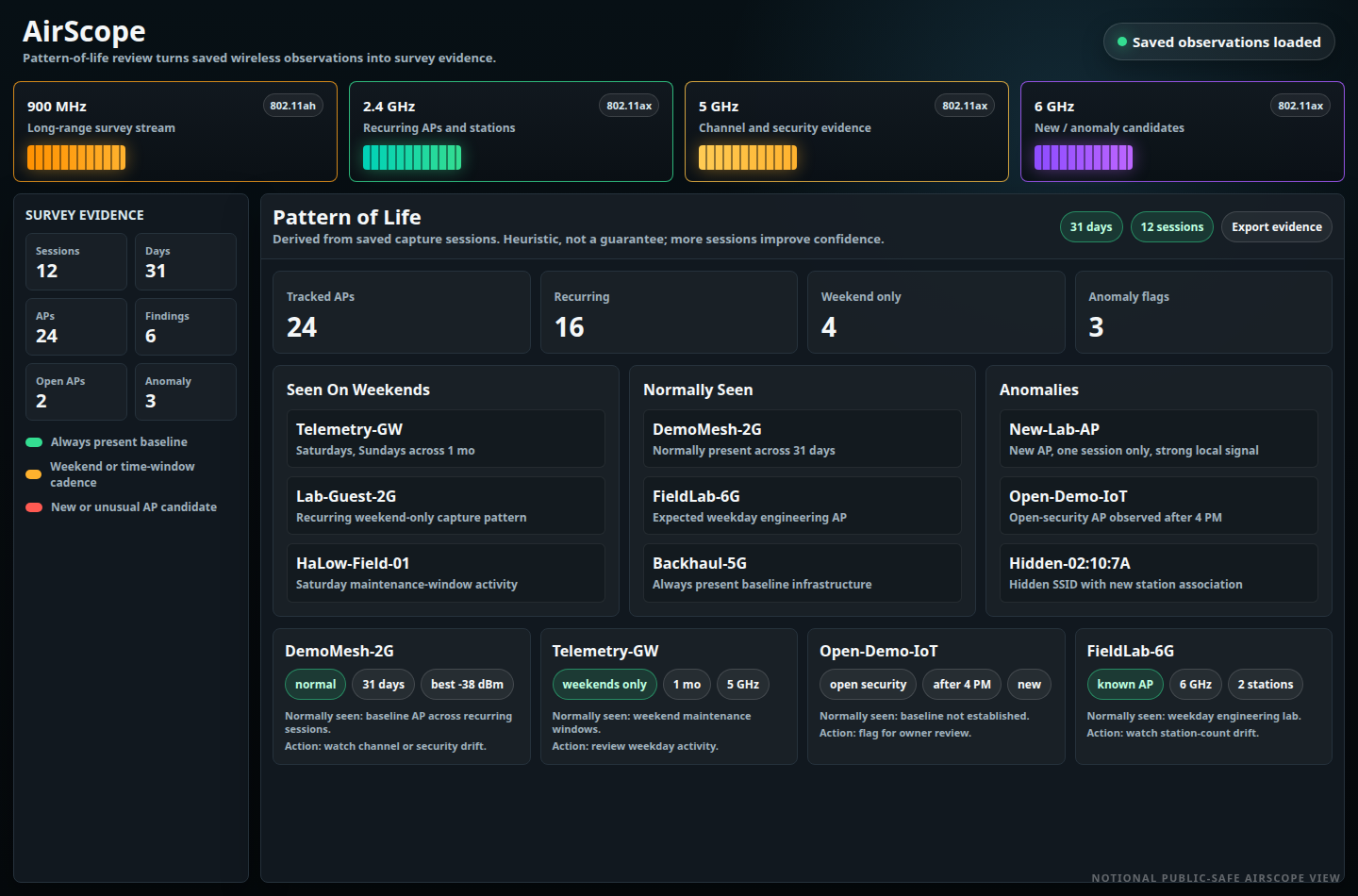

Pattern of Life

Wireless observations become more useful when they show recurrence and change.

AirScope is positioned to support pattern-of-life review for wireless environments: recurring AP presence, first-seen and last-seen timing, band and channel usage, signal trend, and survey-to-survey changes can be reviewed as engineering evidence rather than one-off scan results.

Review Signals

First-seen, last-seen, recurrence, and observation count
Band, channel, frequency, and signal trend over a survey
Known, new, missing, or anomalous AP behavior
Exportable evidence for follow-up analysis and reporting
